Why Does My Van Keep Blocking Its DPF? Short Journeys, Fault Codes and What to Check

On vans and fleet vehicles, a DPF that keeps blocking is usually down to how the vehicle is used, or to something that stops it regenerating. It is rarely just a bad filter.

That matters because cleaning or replacing the filter without finding out which one you are dealing with can leave you with the same warning light a few weeks later. Here is why delivery rounds are hard on a diesel particulate filter, what the dashboard light is telling you, and what some of the common DPF fault codes do and do not mean.

What a DPF needs to look after itself

A DPF traps soot from the exhaust. To keep itself clear, it has to burn that soot off in a regeneration, and that needs sustained exhaust heat. The RAC describes short journeys at low speeds as the prime cause of blocked diesel particulate filters. It also notes that when the journey is too short, the regeneration may not complete and the warning light stays on.

Why vans and fleet rounds are hard on a filter

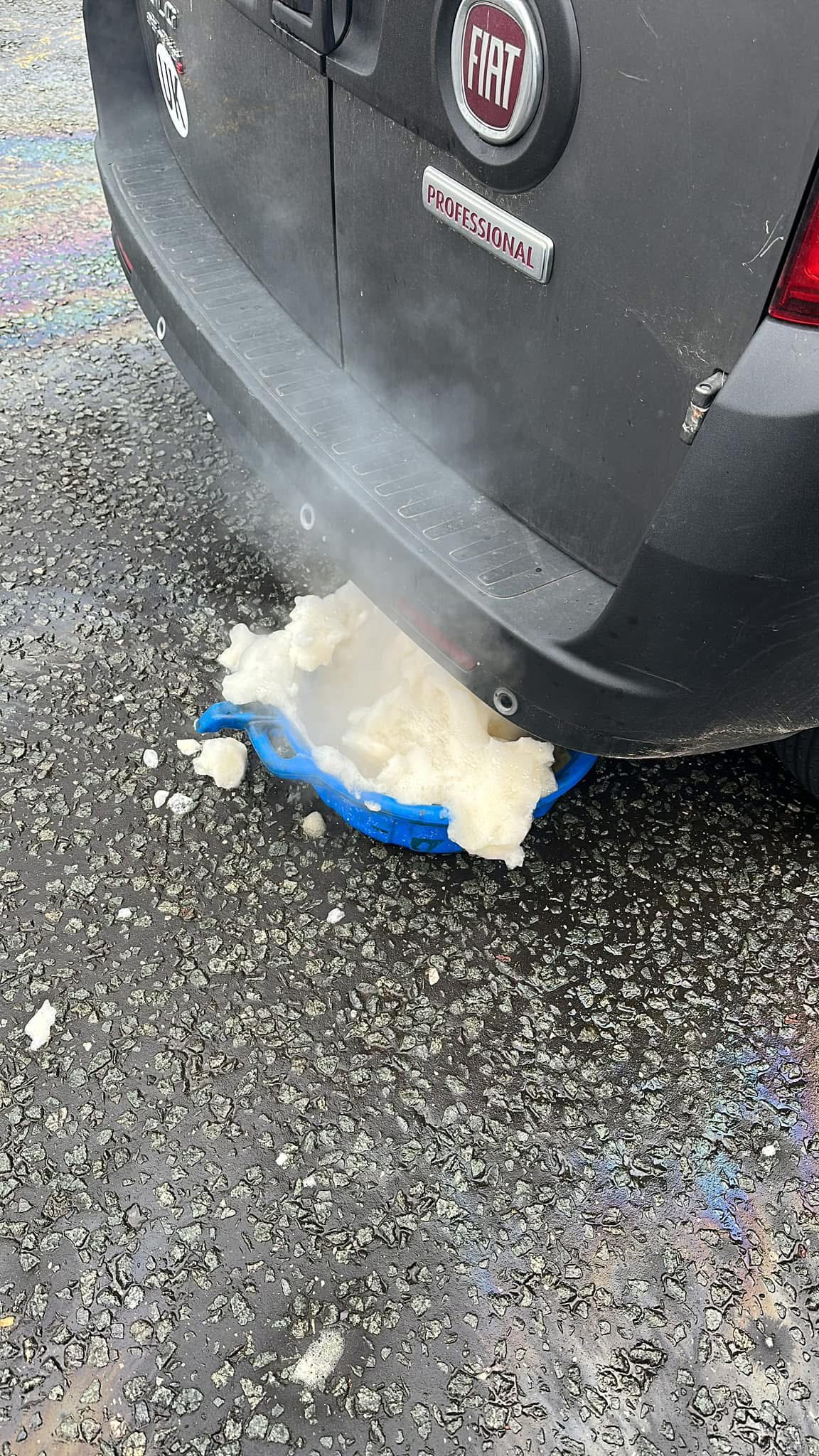

A Fiat Professional van in our Rhyl workshop.

Think about a typical working day for a van:

• Short hops between drops or job sites
• Stop-start traffic and cold starts
• Long idling at a loading bay or on site
• The engine switched off at the end of a stop, whether or not it was part way through a regeneration

None of that gives the exhaust long enough at temperature. The filter keeps loading and the regeneration keeps being interrupted. For a fleet, the honest answer is sometimes that the van is on the wrong round for a diesel with a filter, and no part fixes that.

What the dashboard light is telling you

It depends what the light is doing. A steady DPF warning usually means the filter is loading up and the vehicle wants a longer run at a steady speed to complete a regeneration. The RAC suggests driving for around 10 minutes at speeds above 40mph in that situation, and says that if the light stays on, turns red or performance drops, the vehicle should be inspected by a garage.

A flashing light, additional warnings or limp mode means stop driving it and ring us.

You can sometimes tell a regeneration is under way from the vehicle itself. The RAC lists a change in engine note, cooling fans running, a higher idle speed, stop-start being deactivated and a hot, acrid smell from the exhaust. If you see those, try not to switch the engine off part way through.

Example DPF fault codes and what they can mean

When a DPF warning comes on, the vehicle usually stores one or more fault codes. A code is information, and a starting point for testing. It is not a diagnosis. These are examples of codes that can appear on DPF-equipped diesels. They are general examples and are not from one particular job, and the wording can vary between sources and manufacturers.

• P2002 – DPF efficiency below threshold. The system has concluded the filter is not holding soot as it should. That can be because it is too full, because it is damaged, or because a sensor is giving a wrong picture.
• P2463 – DPF restriction, soot accumulation. The calculated or measured soot level has passed the limit. Short, cold journeys and failed regenerations are common reasons, but the code does not say which one applies to your vehicle.
• P2459 – DPF regeneration frequency. The filter is regenerating more often than expected. Rather than pointing at the filter, that can suggest something upstream is producing more soot than normal, such as an injector, EGR or fuel system problem.
• P2452 – DPF pressure sensor circuit. A fault in the circuit of the sensor that measures pressure across the filter. Wiring or the sensor can be the problem, so a code like this does not prove the filter itself is blocked.

That is why we do not clear a code and send the vehicle back out. Clearing it does not fix whatever stored it.

When it is not the driving

If the vehicle is getting proper runs and the light still comes back, we look for a fault. These are the areas we check:

• Injectors
• EGR valve and circuit
• Turbo and boost leaks
• Glow plugs
• Sensors
• Oil dilution from failed regenerations

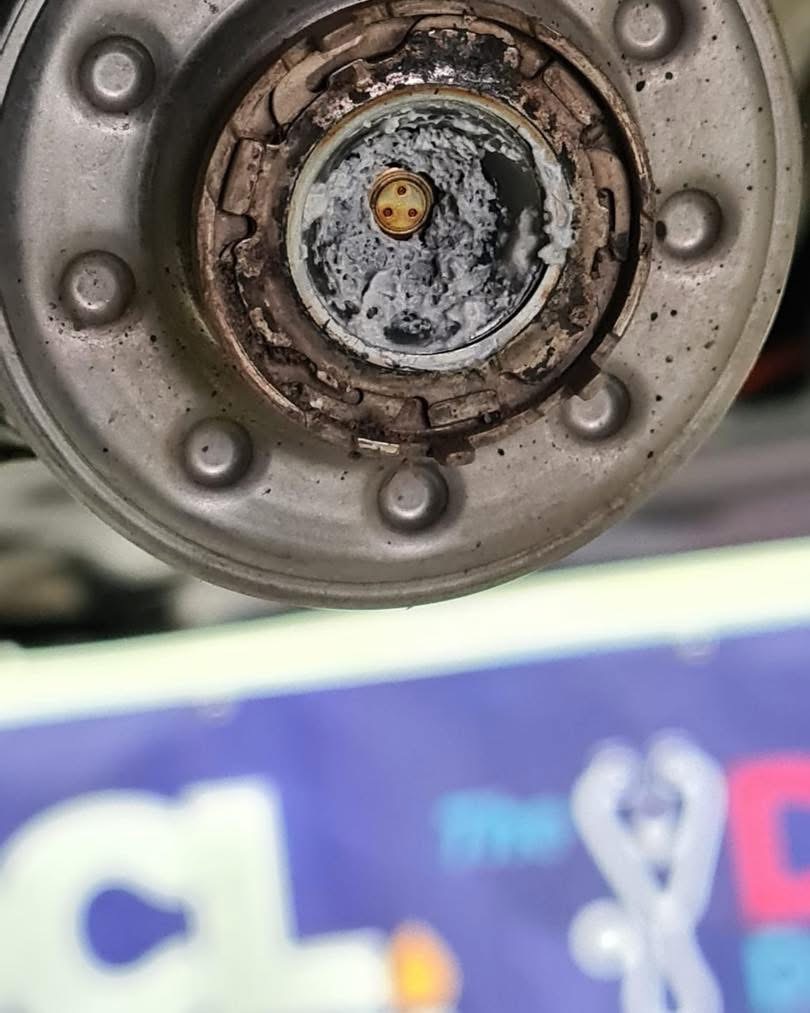

A glow plug tip showing corrosion and residue. Glow plugs are one of the things we check.

How we tell driving from a fault

A digital manometer connected in the engine bay. Pressure readings are one of the measurements we use.

Our DPF Doctor assessment looks at live data with the engine running: differential pressure across the filter, exhaust gas temperatures, calculated soot load against measured, and how many regenerations the vehicle has attempted and completed. That tells us whether the vehicle is struggling because of how it is used, or because something is wrong. You get the findings and a price before anything else happens. The assessment is £150 including VAT, and any repair needed afterwards is quoted separately.

What fleet managers can do

• Look at the round. Does each van get a sustained run at speed, or is it all short hops and idling?
• Report the light early, while it is still a steady warning and not limp mode.
• Avoid switching off part way through a regeneration where you can.
• If the same van keeps coming back with the light on, get it assessed rather than cleaned again.

DPF assessment and cleaning is done at our Rhyl workshop, where we also look after vans and fleet vehicles. We are part of the DPF Doctor network, a group of independent garages trained in DPF diagnosis by Darren Darling, known as The DPF Doctor. You can read more about our fleet and van servicing and our DPF cleaning and assessment.

Questions we get asked

Will cleaning fix it if the van’s round does not change?

Not for long. If short, cold journeys are the cause, the filter can load up again. We would rather have that conversation than sell you the same clean twice.

Can I keep driving with the DPF light on?

If it is steady and the vehicle is driving normally, a longer steady run may let it complete a regeneration. If it flashes, other warnings appear or the vehicle drops into limp mode, stop driving it and ring us.

Which branch deals with DPF problems?

Our Rhyl workshop. DPF work is not done at Kinmel Bay.

Van keeps blocking its DPF?

Start with the assessment. You get the readings, the cause and a price before anything is committed to.
